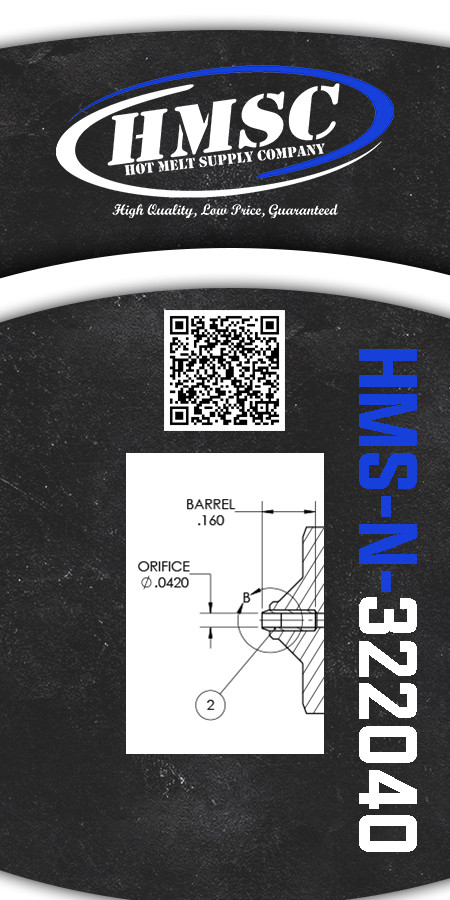

Replacement Nozzle for Nordson® 322040 .040

SKU T3B20E0S Replaces Nordson® 322040

HMSC pencil nozzle HMS-N-322040, replaces Nordson® 322040, .040 in orifice, .150 in engagement

Hot Melt Supply Company LLC

MSRP: $23.00
$22.00
(You save $1.00 )
Adding to cart… The item has been added
Download the spec sheetPDF
Need to confirm the fit or order by phone? 1-888-202-1788 Email sales

Specifications

Nozzle ID guide
Replaces Nordson®
322040
Also replaces
322-040971XX411A237-640B640H322040NPS140
Other brands
Category
Single Orifice Pencil Nozzles.150 Engagement
Orifice Diameter
.040 in
Engagement Length
.150 in
Body Material
Brass
Insert Material
Stainless steel
Nozzle Type
Pencil
Pattern
Straight, single orifice
HMSC part number
HMS-N-322040
Specification Sheet
Download (PDF)
SKU
T3B20E0S
Weight
0.05 LBS
Shipping
Calculated at checkout

Hot Melt Supply is an independent company and is not affiliated with, endorsed by, or sponsored by Nordson Corporation or any other OEM. All products are manufactured by Hot Melt Supply unless otherwise noted. Any OEM names, part numbers, trademarks, or brands mentioned are for identification and reference purposes only and are used to indicate compatibility with non-OEM replacement parts.

Description

Replacement Nozzle for Nordson® 322040 .040

Direct replacement for OEM part number 322040. Precision-machined replacement nozzle for accurate bead placement and consistent adhesive application. Drop-in compatible for fast changeover with no modifications required.

Specifications: .040 Diameter, .150L Replacement Nozzle for Nordson® 322040 .040 Replacement Pencil Nozzles for Nordson® Standard Modules Nozzle Data Sheets HMS-N-322040

Why Choose This Part:

  • Compatible replacement, drop-in fit, no modifications needed
  • Engineered to meet or exceed OEM performance standards
  • In-stock and ready to ship to minimize your downtime
  • Replaces OEM part number: Nordson® 322040

Catalog specifications

HMSC part numberHMS-N-322040
Replaces Nordson®322040
TypePencil
PatternStraight, single orifice
Orifice.040 in
Engagement length.150 in

Straight pencil nozzle with a .040 in orifice and .150 in engagement (the length of the orifice bore inside the insert). 322030 and 322040 are .150 engagement despite the 3220 number.

Phosphor brass body with a precision drilled stainless steel insert, orifice held to ±.0005 in. Every nozzle is hand probed and inspected, inserted and crimped, inspected for straightness, and marked with the orifice size on the hex. Fits all H200 modules.

From the HMSC Hot Melt Field Guide. Nordson is a registered trademark of Nordson Corporation; part numbers are used for identification only.
