Replacement .012 Nozzle for Nordson® 714977

SKU T7A49K7S Replaces Nordson® 714977

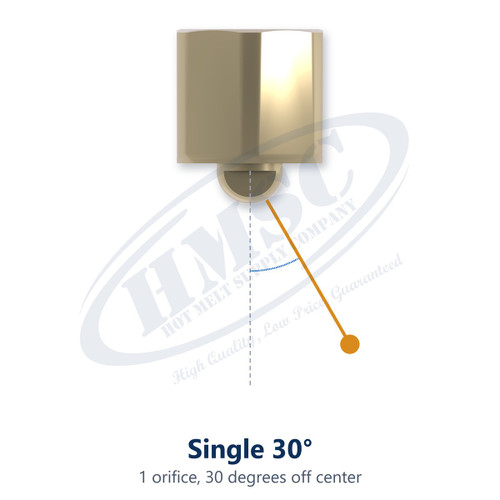

Spray pattern of HMSC button nozzle HMS-N-714977: Single 30°, 1 orifice, 30 degrees off center

Hot Melt Supply Company LLC

$41.00
Adding to cart… The item has been added
Download the spec sheetPDF
Need to confirm the fit or order by phone? 1-888-202-1788 Email sales

Specifications

Nozzle ID guide
Replaces Nordson®
714977
Also replaces
Other brands
Replaces Graco InvisiPac
130821
Category
Mini Button NozzlesSingle Orifice Offset Nozzles
Orifice Diameter
.012 in
Nozzle Type
Button
Pattern
Single 30°
HMSC part number
HMS-N-714977
Specification Sheet
Download (PDF)
SKU
T7A49K7S
Weight
0.05 LBS
Shipping
Calculated at checkout

Hot Melt Supply is an independent company and is not affiliated with, endorsed by, or sponsored by Nordson Corporation or any other OEM. All products are manufactured by Hot Melt Supply unless otherwise noted. Any OEM names, part numbers, trademarks, or brands mentioned are for identification and reference purposes only and are used to indicate compatibility with non-OEM replacement parts.

Description

Replacement .012 Nozzle for Nordson® 714977

Direct replacement for OEM part number 714977. Precision-machined replacement nozzle for accurate bead placement and consistent adhesive application. Drop-in compatible for fast changeover with no modifications required.

Specifications: 30Deg, .012 Diameter Replacement .012 Nozzle for Nordson® 714977 Replacement Nozzles for Nordson® H20 and E700 Module Mini-Button Nozzles

Why Choose This Part:

  • Compatible replacement, drop-in fit, no modifications needed
  • Engineered to meet or exceed OEM performance standards
  • In-stock and ready to ship to minimize your downtime
  • Replaces OEM part number: Nordson® 714977

Catalog specifications

HMSC part numberHMS-N-714977
Replaces Nordson®714977
TypeButton
PatternSingle 30°
Orifice.012 in
Graco InvisiPac® equivalent130821

Where the beads land

Product distance from the tip0.5 in1 in2 in3 in
30° from center0.35 in0.63 in1.21 in1.79 in

Offset of each bead from the nozzle centerline.

Domed button nozzle. 1 orifice, 30 degrees off center.

One piece phosphor brass with precision drilled orifices held to ±.0005 in. Fits all H200 modules.

From the HMSC Hot Melt Field Guide. Nordson is a registered trademark of Nordson Corporation; part numbers are used for identification only.
