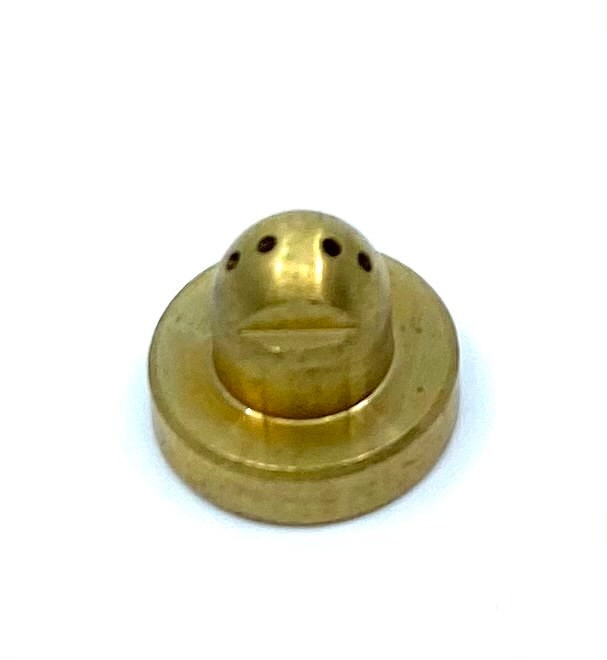

Replacement .010 Nozzle for Nordson® 709479

SKU T7P94K9S Replaces Nordson® 709479

Spray pattern of HMSC button nozzle HMS-N-709479: Quad 40°, 4 orifices, 40 degrees across

Hot Melt Supply Company LLC

$88.00
Adding to cart… The item has been added
Download the spec sheetPDF
Need to confirm the fit or order by phone? 1-888-202-1788 Email sales

Specifications

Nozzle ID guide
Replaces Nordson®
709479
Also replaces
Other brands
Replaces Valco/Melton
973xx002
Replaces Graco InvisiPac
130703
Category
Mini Button Nozzles4 Orifice Line Pattern Nozzles
Orifice Diameter
.010 in
Nozzle Type
Button
Pattern
Quad 40°
HMSC part number
HMS-N-709479
Specification Sheet
Download (PDF)
SKU
T7P94K9S
Weight
0.05 LBS
Shipping
Calculated at checkout

Hot Melt Supply is an independent company and is not affiliated with, endorsed by, or sponsored by Nordson Corporation or any other OEM. All products are manufactured by Hot Melt Supply unless otherwise noted. Any OEM names, part numbers, trademarks, or brands mentioned are for identification and reference purposes only and are used to indicate compatibility with non-OEM replacement parts.

Description

Replacement .010 Nozzle for Nordson® 709479

Direct replacement for OEM part number 709479. Precision-machined replacement nozzle for accurate bead placement and consistent adhesive application. Drop-in compatible for fast changeover with no modifications required.

Specifications: .010 Diameter, 90Deg Replacement .010 Nozzle for Nordson® 709479 Replacement Nozzles for Nordson® H20 and E700 Module Mini-Button Nozzles

Why Choose This Part:

  • Compatible replacement, drop-in fit, no modifications needed
  • Engineered to meet or exceed OEM performance standards
  • In-stock and ready to ship to minimize your downtime
  • Replaces OEM part numbers: Nordson® 709479, Valco/Melton® 973xx002

Catalog specifications

HMSC part numberHMS-N-709479
Replaces Nordson®709479
TypeButton
PatternQuad 40°
Orifice.010 in
Graco InvisiPac® equivalent130703
Valco equivalent973xx002

Where the beads land

Product distance from the tip0.5 in1 in2 in3 in
6.7° from center0.07 in0.13 in0.25 in0.36 in
20° from center0.22 in0.40 in0.76 in1.13 in

Offset of each bead from the nozzle centerline.

Domed button nozzle. 4 orifices, 40 degrees across.

One piece phosphor brass with precision drilled orifices held to ±.0005 in. Fits all H200 modules.

From the HMSC Hot Melt Field Guide. Nordson is a registered trademark of Nordson Corporation; part numbers are used for identification only.
