Replacement .028 Nozzle for Nordson® 322428

SKU T3B24B8S Replaces Nordson® 322428

HMSC pencil nozzle HMS-N-322428, replaces Nordson® 322428, .028 in orifice, .300 in engagement

Hot Melt Supply Company LLC

MSRP: $26.00
$25.00
(You save $1.00 )
Adding to cart… The item has been added
Download the spec sheetPDF
Need to confirm the fit or order by phone? 1-888-202-1788 Email sales

Specifications

Nozzle ID guide
Replaces Nordson®
322428
Also replaces
35109065010-060971XX507A237-060B1228B928CN1408GLEN-.028H237060H322428MB928NPL128ZLA37F60ZLS22D28237060
Other brands
INFINITY NP-322428
Replaces Valco/Melton
971xx507
Replaces Graco InvisiPac
130076
Category
Single Orifice Pencil Nozzles.300 Engagement
Orifice Diameter
.028 in
Engagement Length
.300 in
Body Material
Brass
Insert Material
Stainless steel
Nozzle Type
Pencil
Pattern
Straight, single orifice
HMSC part number
HMS-N-322428
Specification Sheet
Download (PDF)
SKU
T3B24B8S
Weight
0.05 LBS
Shipping
Calculated at checkout

Hot Melt Supply is an independent company and is not affiliated with, endorsed by, or sponsored by Nordson Corporation or any other OEM. All products are manufactured by Hot Melt Supply unless otherwise noted. Any OEM names, part numbers, trademarks, or brands mentioned are for identification and reference purposes only and are used to indicate compatibility with non-OEM replacement parts.

Description

Replacement .028 Nozzle for Nordson® 322428

Direct replacement for OEM part number 322428. Precision-machined replacement nozzle for accurate bead placement and consistent adhesive application. Drop-in compatible for fast changeover with no modifications required.

Specifications: .028 Diameter, .300L Replacement .028 Nozzle for Nordson® 322428 Replacement Pencil Nozzles for Nordson® Standard Modules

Why Choose This Part:

  • Compatible replacement, drop-in fit, no modifications needed
  • Engineered to meet or exceed OEM performance standards
  • In-stock and ready to ship to minimize your downtime
  • Replaces OEM part numbers: Nordson® 322428, Valco/Melton® 971xx507

Catalog specifications

HMSC part numberHMS-N-322428
Replaces Nordson®322428
Also replaces237060, 351090
TypePencil
PatternStraight, single orifice
Orifice.028 in
Engagement length.300 in
Graco InvisiPac® equivalent130076
Valco equivalent971xx507

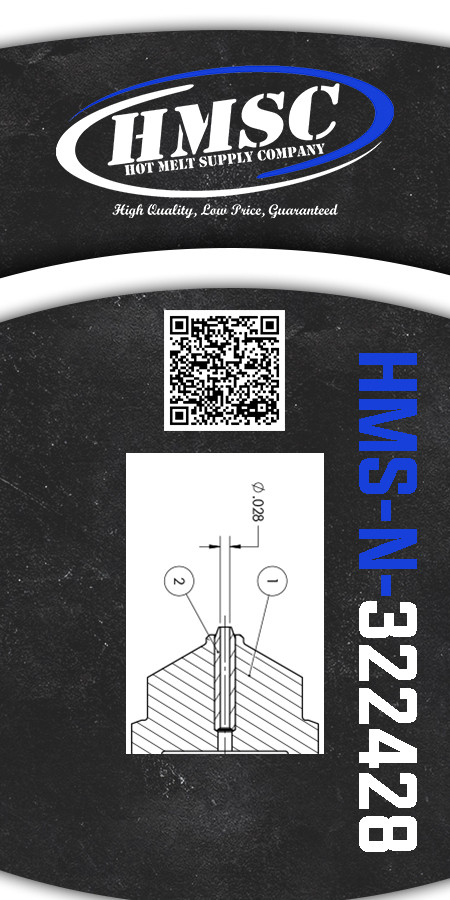

Straight pencil nozzle with a .028 in orifice and .300 in engagement (the length of the orifice bore inside the insert).

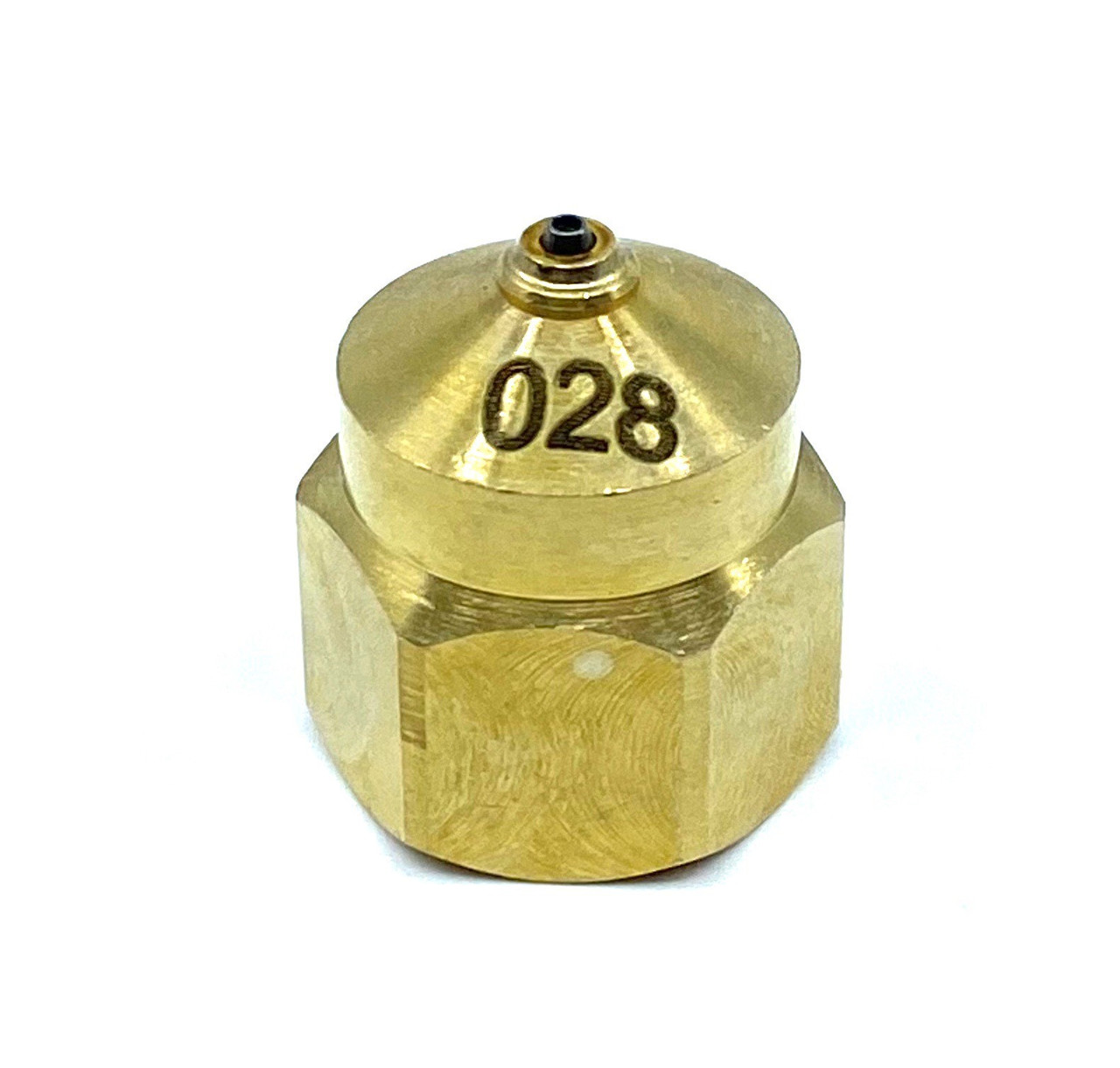

Phosphor brass body with a precision drilled stainless steel insert, orifice held to ±.0005 in. Every nozzle is hand probed and inspected, inserted and crimped, inspected for straightness, and marked with the orifice size on the hex. Fits all H200 modules.

From the HMSC Hot Melt Field Guide. Nordson is a registered trademark of Nordson Corporation; part numbers are used for identification only.
