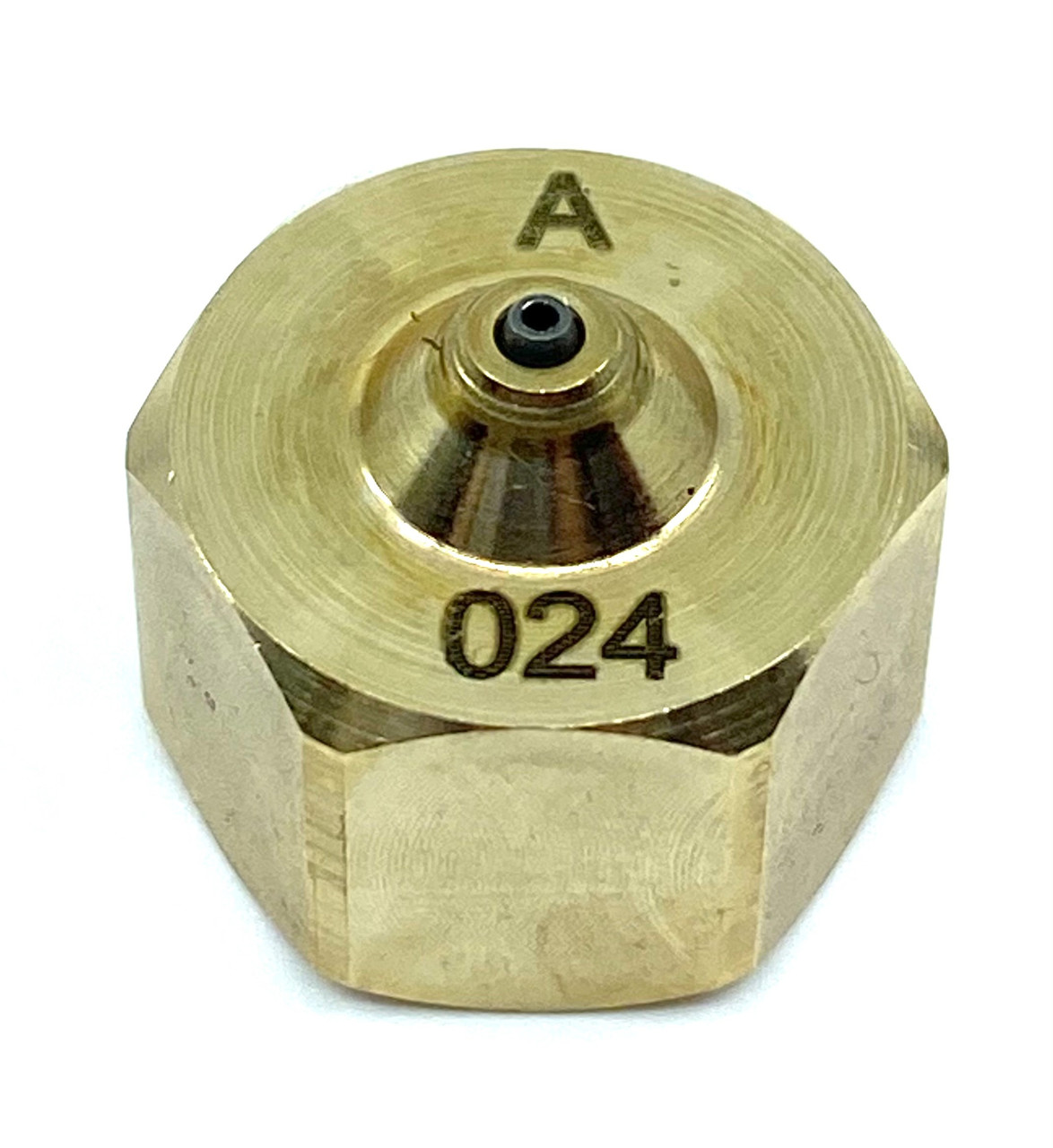

Replacement Nozzle for Nordson® 322224 .024

SKU T3B22B4S Replaces Nordson® 322224

HMSC pencil nozzle HMS-N-322224, replaces Nordson® 322224, .024 in orifice, .100 in engagement

Hot Melt Supply Company LLC

MSRP: $23.00
$22.00
(You save $1.00 )
Adding to cart… The item has been added
Download the spec sheetPDF
Need to confirm the fit or order by phone? 1-888-202-1788 Email sales

Specifications

Nozzle ID guide
Replaces Nordson®
322224
Also replaces
65010-424971XX308A237-624A237624A322224B424B624CN1446H237624H322224ZLA37C24ZLS22A24237624
Other brands
INFINITY NP-322224
Replaces Valco/Melton
971xx308
Replaces Graco InvisiPac
130046
Category
Single Orifice Pencil Nozzles.100 Engagement
Orifice Diameter
.024 in
Engagement Length
.100 in
Body Material
Brass
Insert Material
Stainless steel
Nozzle Type
Pencil
Pattern
Straight, single orifice
HMSC part number
HMS-N-322224
Specification Sheet
Download (PDF)
SKU
T3B22B4S
Weight
0.05 LBS
Shipping
Calculated at checkout

Hot Melt Supply is an independent company and is not affiliated with, endorsed by, or sponsored by Nordson Corporation or any other OEM. All products are manufactured by Hot Melt Supply unless otherwise noted. Any OEM names, part numbers, trademarks, or brands mentioned are for identification and reference purposes only and are used to indicate compatibility with non-OEM replacement parts.

Description

Replacement Nozzle for Nordson® 322224 .024

Direct replacement for OEM part number 322224. Precision-machined replacement nozzle for accurate bead placement and consistent adhesive application. Drop-in compatible for fast changeover with no modifications required.

Specifications: .024 Diameter, .100L Replacement Nozzle for Nordson® 322224 .024 Replacement Pencil Nozzles for Nordson® Standard Modules

Why Choose This Part:

  • Compatible replacement, drop-in fit, no modifications needed
  • Engineered to meet or exceed OEM performance standards
  • In-stock and ready to ship to minimize your downtime
  • Replaces OEM part numbers: Nordson® 322224, Valco/Melton® 971xx308

Catalog specifications

HMSC part numberHMS-N-322224
Replaces Nordson®322224
Also replaces237624
TypePencil
PatternStraight, single orifice
Orifice.024 in
Engagement length.100 in
Graco InvisiPac® equivalent130046
Valco equivalent971xx308, 971xx408

Straight pencil nozzle with a .024 in orifice and .100 in engagement (the length of the orifice bore inside the insert).

Phosphor brass body with a precision drilled stainless steel insert, orifice held to ±.0005 in. Every nozzle is hand probed and inspected, inserted and crimped, inspected for straightness, and marked with the orifice size on the hex. Fits all H200 modules.

From the HMSC Hot Melt Field Guide. Nordson is a registered trademark of Nordson Corporation; part numbers are used for identification only.
