Replacement Nozzle for Nordson® 322214 .014

SKU T3B22A4S Replaces Nordson® 322214

HMSC pencil nozzle HMS-N-322214, replaces Nordson® 322214, .014 in orifice, .100 in engagement

Hot Melt Supply Company LLC

MSRP: $23.00
$22.00
(You save $1.00 )
Adding to cart… The item has been added
Download the spec sheetPDF
Need to confirm the fit or order by phone? 1-888-202-1788 Email sales

Specifications

Nozzle ID guide
Replaces Nordson®
322214
Also replaces
23986524X05365010-414971XX304A237414A322214B414CN1442H237414H322214NO20AM-414S22A14ZLA37D14ZLS22A14237414
Other brands
INFINITY NP-322214
Replaces Valco/Melton
971xx304
Replaces Graco InvisiPac
130042
Category
Single Orifice Pencil Nozzles.100 Engagement
Orifice Diameter
.014 in
Engagement Length
.100 in
Body Material
Brass
Insert Material
Stainless steel
Nozzle Type
Pencil
Pattern
Straight, single orifice
HMSC part number
HMS-N-322214
Specification Sheet
Download (PDF)
SKU
T3B22A4S
Weight
0.05 LBS
Shipping
Calculated at checkout

Hot Melt Supply is an independent company and is not affiliated with, endorsed by, or sponsored by Nordson Corporation or any other OEM. All products are manufactured by Hot Melt Supply unless otherwise noted. Any OEM names, part numbers, trademarks, or brands mentioned are for identification and reference purposes only and are used to indicate compatibility with non-OEM replacement parts.

Description

Replacement Nozzle for Nordson® 322214 .014

Direct replacement for OEM part number 322214. Precision-machined replacement nozzle for accurate bead placement and consistent adhesive application. Drop-in compatible for fast changeover with no modifications required.

Specifications: .014 Diameter, .100L Replacement Nozzle for Nordson® 322214 .014 Replacement Pencil Nozzles for Nordson® Standard Modules

Why Choose This Part:

  • Compatible replacement, drop-in fit, no modifications needed
  • Engineered to meet or exceed OEM performance standards
  • In-stock and ready to ship to minimize your downtime
  • Replaces OEM part numbers: Nordson® 322214, Valco/Melton® 971xx304

Catalog specifications

HMSC part numberHMS-N-322214
Replaces Nordson®322214
Also replaces237414, 239865
TypePencil
PatternStraight, single orifice
Orifice.014 in
Engagement length.100 in
Graco InvisiPac® equivalent130042
Valco equivalent971xx304

Straight pencil nozzle with a .014 in orifice and .100 in engagement (the length of the orifice bore inside the insert).

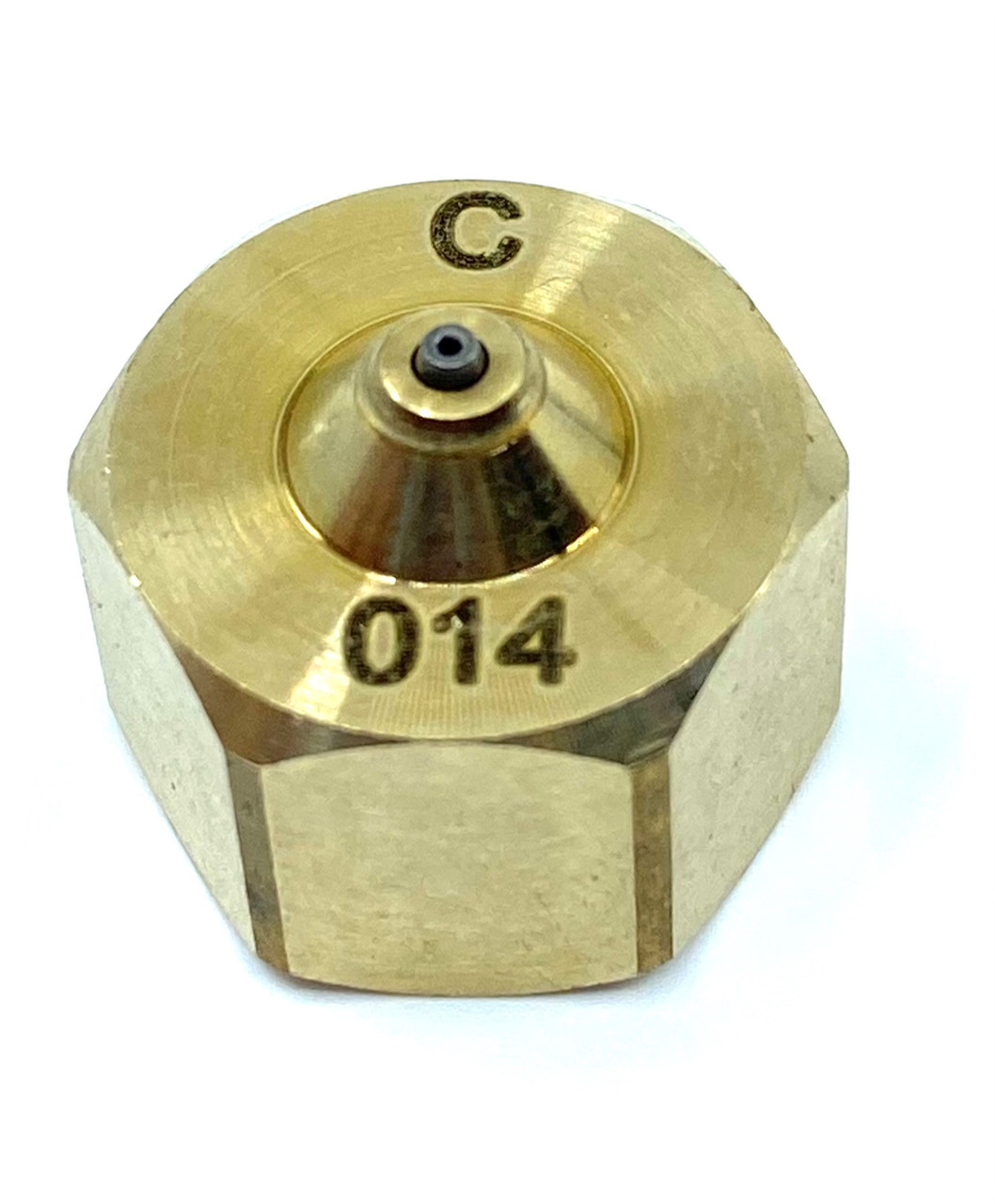

Phosphor brass body with a precision drilled stainless steel insert, orifice held to ±.0005 in. Every nozzle is hand probed and inspected, inserted and crimped, inspected for straightness, and marked with the orifice size on the hex. Fits all H200 modules.

From the HMSC Hot Melt Field Guide. Nordson is a registered trademark of Nordson Corporation; part numbers are used for identification only.
