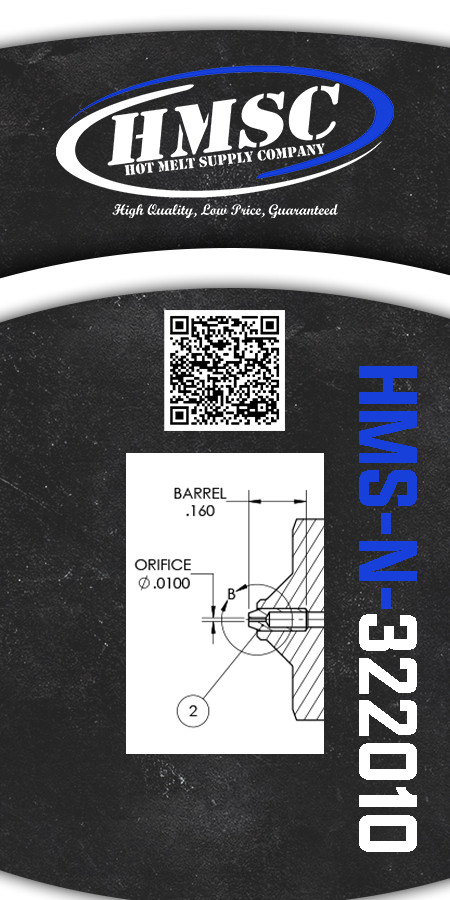

Replacement Nozzle for Nordson® 322010 .010

SKU T3B20A0S Replaces Nordson® 322010

HMSC pencil nozzle HMS-N-322010, replaces Nordson® 322010, .010 in orifice, .050 in engagement

Hot Melt Supply Company LLC

MSRP: $23.00
$22.00
(You save $1.00 )
Adding to cart… The item has been added
Download the spec sheetPDF
Need to confirm the fit or order by phone? 1-888-202-1788 Email sales

Specifications

Nozzle ID guide
Replaces Nordson®
322010
Also replaces
65010-210671XX102971XX102A237-210A322010APNN8202B210CN1423G322010GNS-STRAIGHT-I-010GNS.010H237210H322010MB210NPS110ZLA37A10ZLS22F10237210
Other brands
ASTRO APNN8202GLEN GNS-STRAIGHT-I-024INFINITY NP-322010
Replaces Valco/Melton
971xx102
Replaces Graco InvisiPac
130011
Category
Single Orifice Pencil Nozzles.050 Engagement
Orifice Diameter
.010 in
Engagement Length
.050 in
Body Material
Brass
Insert Material
Stainless steel
Nozzle Type
Pencil
Pattern
Straight, single orifice
HMSC part number
HMS-N-322010
Specification Sheet
Download (PDF)
SKU
T3B20A0S
Weight
0.05 LBS
Shipping
Calculated at checkout

Hot Melt Supply is an independent company and is not affiliated with, endorsed by, or sponsored by Nordson Corporation or any other OEM. All products are manufactured by Hot Melt Supply unless otherwise noted. Any OEM names, part numbers, trademarks, or brands mentioned are for identification and reference purposes only and are used to indicate compatibility with non-OEM replacement parts.

Description

Replacement Nozzle for Nordson® 322010 .010

Direct replacement for OEM part number 322010. Precision-machined replacement nozzle for accurate bead placement and consistent adhesive application. Drop-in compatible for fast changeover with no modifications required.

Specifications: .010 Diameter, .050L Replacement Nozzle for Nordson® 322010 .010 Replacement Pencil Nozzles for Nordson® Standard Modules Nozzle Data Sheet HMS-N-322010

Why Choose This Part:

  • Compatible replacement, drop-in fit, no modifications needed
  • Engineered to meet or exceed OEM performance standards
  • In-stock and ready to ship to minimize your downtime
  • Replaces OEM part numbers: Nordson® 322010, Valco/Melton® 971xx102

Catalog specifications

HMSC part numberHMS-N-322010
Replaces Nordson®322010
Also replaces237210
TypePencil
PatternStraight, single orifice
Orifice.010 in
Engagement length.050 in
Graco InvisiPac® equivalent130011
Valco equivalent971xx102

Straight pencil nozzle with a .010 in orifice and .050 in engagement (the length of the orifice bore inside the insert).

Phosphor brass body with a precision drilled stainless steel insert, orifice held to ±.0005 in. Every nozzle is hand probed and inspected, inserted and crimped, inspected for straightness, and marked with the orifice size on the hex. Fits all H200 modules.

From the HMSC Hot Melt Field Guide. Nordson is a registered trademark of Nordson Corporation; part numbers are used for identification only.
