Replacement for Nordson® 238526, Mini Button, Dual Orifice .012, 45 degree

SKU T2C85B6S Replaces Nordson® 238526

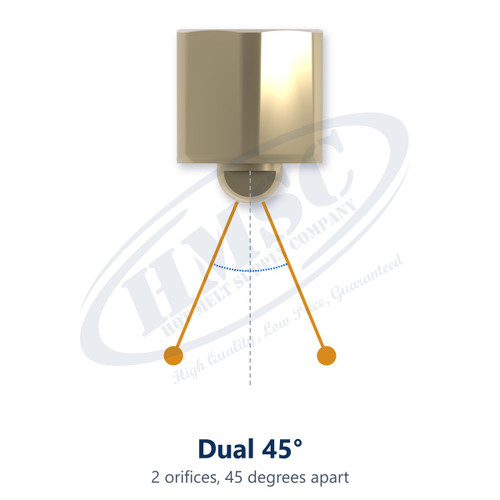

Spray pattern of HMSC button nozzle HMS-N-238526: Dual 45°, 2 orifices, 45 degrees apart

Hot Melt Supply Company LLC

$31.00
Adding to cart… The item has been added
Download the spec sheetPDF
Need to confirm the fit or order by phone? 1-888-202-1788 Email sales

Specifications

Nozzle ID guide
Replaces Nordson®
238526
Also replaces
238526-45804606972XX403A238-526A38G26CN2015H238526LB2412NPM1242PN51242
Other brands
INFINITY NP-238526INFINITY NP-238526-45INFINITY NP-238527
Replaces Valco/Melton
972xx403
Category
Mini Button NozzlesTripple Orifice Line Pattern Nozzles
Nozzle Type
Button
Pattern
Dual 45°
HMSC part number
HMS-N-238526
Orifice Diameter
.012 in
Specification Sheet
Download (PDF)
SKU
T2C85B6S
Weight
0.05 LBS
Shipping
Calculated at checkout

Hot Melt Supply is an independent company and is not affiliated with, endorsed by, or sponsored by Nordson Corporation or any other OEM. All products are manufactured by Hot Melt Supply unless otherwise noted. Any OEM names, part numbers, trademarks, or brands mentioned are for identification and reference purposes only and are used to indicate compatibility with non-OEM replacement parts.

Description

Replacement for Nordson® 238526, Mini Button, Dual Orifice .012, 45 degree

Direct replacement for OEM part number 238526. Precision-machined replacement nozzle for accurate bead placement and consistent adhesive application. Drop-in compatible for fast changeover with no modifications required.

Specifications: Replacement for Nordson® 238526, 2 ori., .012 dia x 45 deg. Replacement Nozzles for Nordson® H20 and E700 Module Mini-Button Nozzles

Why Choose This Part:

  • Compatible replacement, drop-in fit, no modifications needed
  • Engineered to meet or exceed OEM performance standards
  • In-stock and ready to ship to minimize your downtime
  • Replaces OEM part numbers: Nordson® 238526, Valco/Melton® 972xx403

Catalog specifications

HMSC part numberHMS-N-238526
Replaces Nordson®238526
Also replaces804606
TypeButton
PatternDual 45°
Orifice.012 in
Valco equivalent972xx403

Where the beads land

Product distance from the tip0.5 in1 in2 in3 in
22.5° from center0.25 in0.46 in0.87 in1.28 in

Offset of each bead from the nozzle centerline.

Domed button nozzle. 2 orifices, 45 degrees apart.

One piece phosphor brass with precision drilled orifices held to ±.0005 in. Fits all H200 modules.

From the HMSC Hot Melt Field Guide. Nordson is a registered trademark of Nordson Corporation; part numbers are used for identification only.
