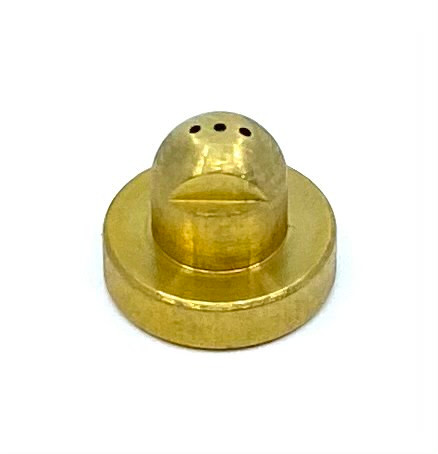

Replacement .012 Nozzle for Nordson® 238043

SKU T2C80E3S Replaces Nordson® 238043

Spray pattern of HMSC button nozzle HMS-N-238043: Triple 60°, 3 orifices, 60 degrees across (center and ±30)

Hot Melt Supply Company LLC

MSRP: $46.00
$44.00
(You save $2.00 )
Adding to cart… The item has been added
Download the spec sheetPDF
Need to confirm the fit or order by phone? 1-888-202-1788 Email sales

Specifications

Nozzle ID guide
Replaces Nordson®
238043
Also replaces
Other brands
Replaces Valco/Melton
972xx703
Replaces Graco InvisiPac
130609
Category
Mini Button NozzlesTripple Orifice Line Pattern Nozzles
Orifice Diameter
.012 in
Nozzle Type
Button
Pattern
Triple 60°
HMSC part number
HMS-N-238043
Specification Sheet
Download (PDF)
SKU
T2C80E3S
Weight
0.05 LBS
Shipping
Calculated at checkout

Hot Melt Supply is an independent company and is not affiliated with, endorsed by, or sponsored by Nordson Corporation or any other OEM. All products are manufactured by Hot Melt Supply unless otherwise noted. Any OEM names, part numbers, trademarks, or brands mentioned are for identification and reference purposes only and are used to indicate compatibility with non-OEM replacement parts.

Description

Replacement .012 Nozzle for Nordson® 238043

Direct replacement for OEM part number 238043. Precision-machined replacement nozzle for accurate bead placement and consistent adhesive application. Drop-in compatible for fast changeover with no modifications required.

Specifications: .012 Diameter, 60Deg Replacement .012 Nozzle for Nordson® 238043 Replacement Nozzles for Nordson® H20 and E700 Module Mini-Button Nozzles

Why Choose This Part:

  • Compatible replacement, drop-in fit, no modifications needed
  • Engineered to meet or exceed OEM performance standards
  • In-stock and ready to ship to minimize your downtime
  • Replaces OEM part numbers: Nordson® 238043, Valco/Melton® 972xx703

Catalog specifications

HMSC part numberHMS-N-238043
Replaces Nordson®238043
TypeButton
PatternTriple 60°
Orifice.012 in
Graco InvisiPac® equivalent130609
Valco equivalent972xx703

Where the beads land

Product distance from the tip0.5 in1 in2 in3 in
30° from center0.35 in0.63 in1.21 in1.79 in

Offset of each bead from the nozzle centerline.

Domed button nozzle. 3 orifices, 60 degrees across (center and ±30).

One piece phosphor brass with precision drilled orifices held to ±.0005 in. Fits all H200 modules.

From the HMSC Hot Melt Field Guide. Nordson is a registered trademark of Nordson Corporation; part numbers are used for identification only.
