Replacement .012 Nozzle for Nordson® 238041

SKU T2C80E1S Replaces Nordson® 238041

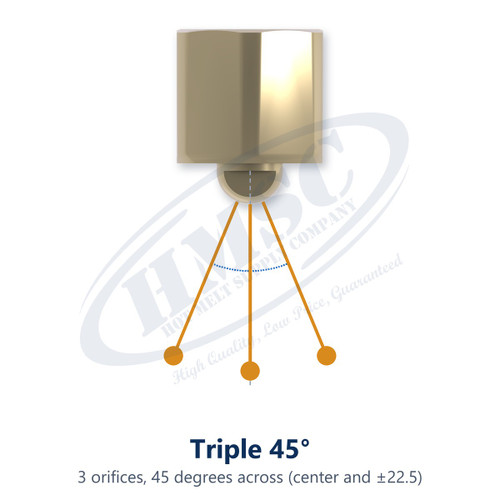

Spray pattern of HMSC button nozzle HMS-N-238041: Triple 45°, 3 orifices, 45 degrees across (center and ±22.5)

Hot Melt Supply Company LLC

$46.00
Adding to cart… The item has been added
Download the spec sheetPDF
Need to confirm the fit or order by phone? 1-888-202-1788 Email sales

Specifications

Nozzle ID guide
Replaces Nordson®
238041
Also replaces
H238041NPM1243T2C80E1S-ZZLA38F41
Other brands
Replaces Graco InvisiPac
130601
Category
Mini Button NozzlesTripple Orifice Line Pattern Nozzles
Orifice Diameter
.012 in
Nozzle Type
Button
Pattern
Triple 45°
HMSC part number
HMS-N-238041
Specification Sheet
Download (PDF)
SKU
T2C80E1S
Weight
0.05 LBS
Shipping
Calculated at checkout

Hot Melt Supply is an independent company and is not affiliated with, endorsed by, or sponsored by Nordson Corporation or any other OEM. All products are manufactured by Hot Melt Supply unless otherwise noted. Any OEM names, part numbers, trademarks, or brands mentioned are for identification and reference purposes only and are used to indicate compatibility with non-OEM replacement parts.

Description

Replacement .012 Nozzle for Nordson® 238041

Direct replacement for OEM part number 238041. Precision-machined replacement nozzle for accurate bead placement and consistent adhesive application. Drop-in compatible for fast changeover with no modifications required.

Specifications: .012 Diameter, 45Deg Replacement .012 Nozzle for Nordson® 238041 Replacement Nozzles for Nordson® H20 and E700 Module Mini-Button Nozzles

Why Choose This Part:

  • Compatible replacement, drop-in fit, no modifications needed
  • Engineered to meet or exceed OEM performance standards
  • In-stock and ready to ship to minimize your downtime
  • Replaces OEM part number: Nordson® 238041

Catalog specifications

HMSC part numberHMS-N-238041
Replaces Nordson®238041
TypeButton
PatternTriple 45°
Orifice.012 in
Graco InvisiPac® equivalent130601

Where the beads land

Product distance from the tip0.5 in1 in2 in3 in
22.5° from center0.25 in0.46 in0.87 in1.28 in

Offset of each bead from the nozzle centerline.

Domed button nozzle. 3 orifices, 45 degrees across (center and ±22.5).

One piece phosphor brass with precision drilled orifices held to ±.0005 in. Fits all H200 modules.

From the HMSC Hot Melt Field Guide. Nordson is a registered trademark of Nordson Corporation; part numbers are used for identification only.
