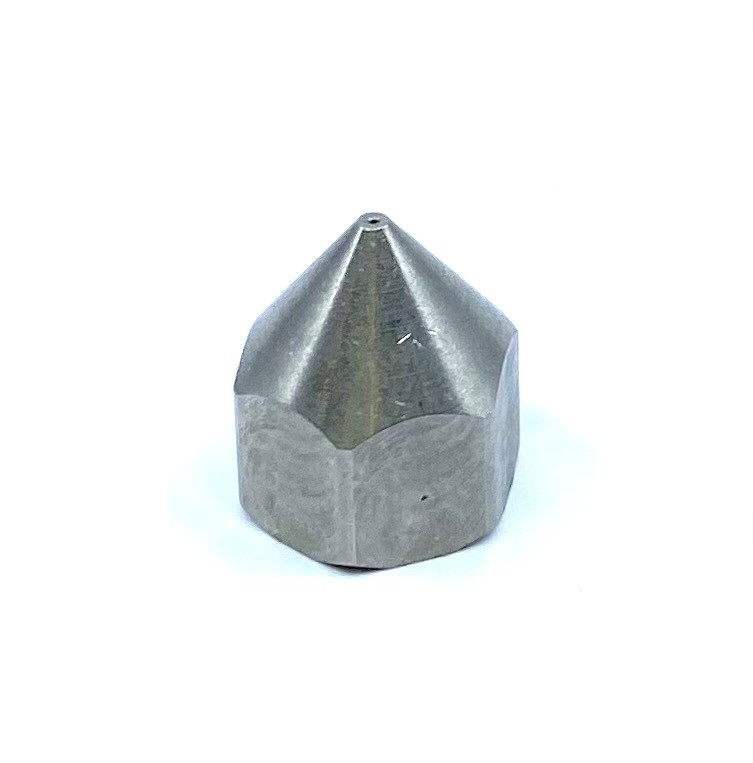

Replacement .016 Nozzle for Nordson® 238023

SKU T2C80B3S Replaces Nordson® 238023

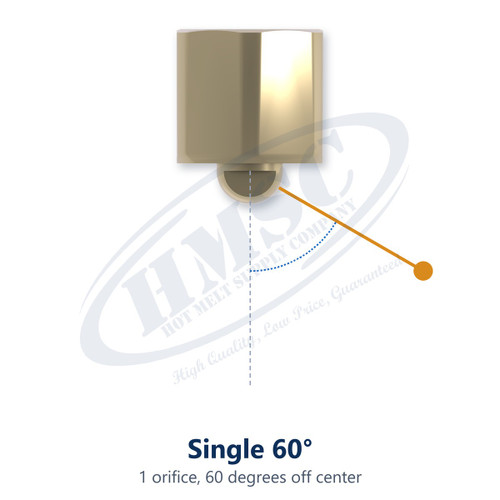

Spray pattern of HMSC button nozzle HMS-N-238023: Single 60°, 1 orifice, 60 degrees off center

Hot Melt Supply Company LLC

$41.00
Adding to cart… The item has been added
Download the spec sheetPDF
Need to confirm the fit or order by phone? 1-888-202-1788 Email sales

Specifications

Nozzle ID guide
Replaces Nordson®
238023
Also replaces
Other brands
Replaces Valco/Melton
972xx505
Replaces Graco InvisiPac
130808
Category
Mini Button NozzlesSingle Orifice Offset Nozzles
Orifice Diameter
.016 in
Nozzle Type
Button
Pattern
Single 60°
HMSC part number
HMS-N-238023
Specification Sheet
Download (PDF)
SKU
T2C80B3S
Weight
0.05 LBS
Shipping
Calculated at checkout

Hot Melt Supply is an independent company and is not affiliated with, endorsed by, or sponsored by Nordson Corporation or any other OEM. All products are manufactured by Hot Melt Supply unless otherwise noted. Any OEM names, part numbers, trademarks, or brands mentioned are for identification and reference purposes only and are used to indicate compatibility with non-OEM replacement parts.

Description

Replacement .016 Nozzle for Nordson® 238023

Direct replacement for OEM part number 238023. Precision-machined replacement nozzle for accurate bead placement and consistent adhesive application. Drop-in compatible for fast changeover with no modifications required.

Specifications: 60Deg, .016 Diameter Replacement .016 Nozzle for Nordson® 238023 Replacement Nozzles for Nordson® H20 and E700 Module Mini-Button Nozzles

Why Choose This Part:

  • Compatible replacement, drop-in fit, no modifications needed
  • Engineered to meet or exceed OEM performance standards
  • In-stock and ready to ship to minimize your downtime
  • Replaces OEM part numbers: Nordson® 238023, Valco/Melton® 972xx505

Catalog specifications

HMSC part numberHMS-N-238023
Replaces Nordson®238023
TypeButton
PatternSingle 60°
Orifice.016 in
Graco InvisiPac® equivalent130808
Valco equivalent972xx505

Where the beads land

Product distance from the tip0.5 in1 in2 in3 in
60° from center1.04 in1.90 in3.64 in5.37 in

Offset of each bead from the nozzle centerline.

Domed button nozzle. 1 orifice, 60 degrees off center.

One piece phosphor brass with precision drilled orifices held to ±.0005 in. Fits all H200 modules.

From the HMSC Hot Melt Field Guide. Nordson is a registered trademark of Nordson Corporation; part numbers are used for identification only.
