Replacement .020 Nozzle for Nordson® 1015920

SKU T10A59B0S Replaces Nordson® 1015920

1 review

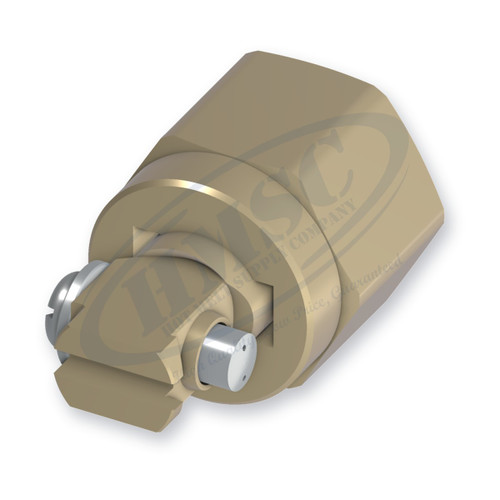

HMSC right angle nozzle HMS-N-1015920, Dual 30° pattern, replaces Nordson® 1015920, .020 in orifice

Hot Melt Supply Company LLC

MSRP: $59.00
$56.00
(You save $3.00 )
Adding to cart… The item has been added
Download the spec sheetPDF
Need to confirm the fit or order by phone? 1-888-202-1788 Email sales

Specifications

Nozzle ID guide
Replaces Nordson®
1015920
Also replaces
1015920AP320220709786974XX407A1015920A709-786APNN92203CN1720H1015920H320220H709786N9M2032R23020SW20S9-2030ZLB09B86ZLK01G920ZLS20A20More cross references: call 1-888-202-1788
Other brands
INFINITY NP-1015920INFINITY NP-320220 OR 1015920PNR 90 DUAL 30 .020
Replaces Valco/Melton
974xx407
Replaces Graco InvisiPac
130222
Category
90 Degree NozzlesDual Orifice
Orifice Diameter
.020 in
Nozzle Type
Right Angle
Pattern
Dual 30°
HMSC part number
HMS-N-1015920
Specification Sheet
Download (PDF)
SKU
T10A59B0S
Weight
0.05 LBS
Shipping
Calculated at checkout

Hot Melt Supply is an independent company and is not affiliated with, endorsed by, or sponsored by Nordson Corporation or any other OEM. All products are manufactured by Hot Melt Supply unless otherwise noted. Any OEM names, part numbers, trademarks, or brands mentioned are for identification and reference purposes only and are used to indicate compatibility with non-OEM replacement parts.

Description

Replacement .020 Nozzle for Nordson® 1015920

Direct replacement for OEM part number 1015920. Precision-machined replacement nozzle for accurate bead placement and consistent adhesive application. Drop-in compatible for fast changeover with no modifications required.

Specifications: .020 Diameter, 30Deg Replacement .020 Nozzle for Nordson® 1015920 Replacement 90 degree Nozzles for Nordson® Standard Modules

Why Choose This Part:

  • Compatible replacement, drop-in fit, no modifications needed
  • Engineered to meet or exceed OEM performance standards
  • In-stock and ready to ship to minimize your downtime
  • Replaces OEM part numbers: Nordson® 1015920, Valco/Melton® 974xx407

Catalog specifications

HMSC part numberHMS-N-1015920
Replaces Nordson®1015920
Also replaces320220, 709786
TypeRight Angle
PatternDual 30°
Orifice.020 in
Graco InvisiPac® equivalent130222
Valco equivalent974xx407

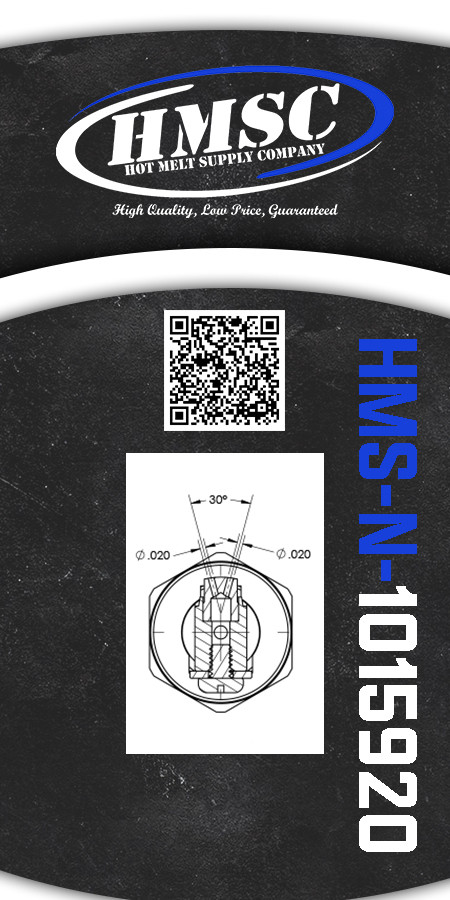

Right angle nozzle with two orifices, 30 degrees total. .020 in orifice.

Phosphor brass body with a precision drilled stainless steel insert, orifice held to ±.0005 in. Every nozzle is hand probed and inspected, inserted and crimped, inspected for straightness, and marked with the orifice size on the hex. Fits all H200 modules.

From the HMSC Hot Melt Field Guide. Nordson is a registered trademark of Nordson Corporation; part numbers are used for identification only.

Reviews (1)

Write a Review
  • 4

    Work as intended

    Work as intended good replacement

    Posted by Joe on 25th Jul 2025

!
