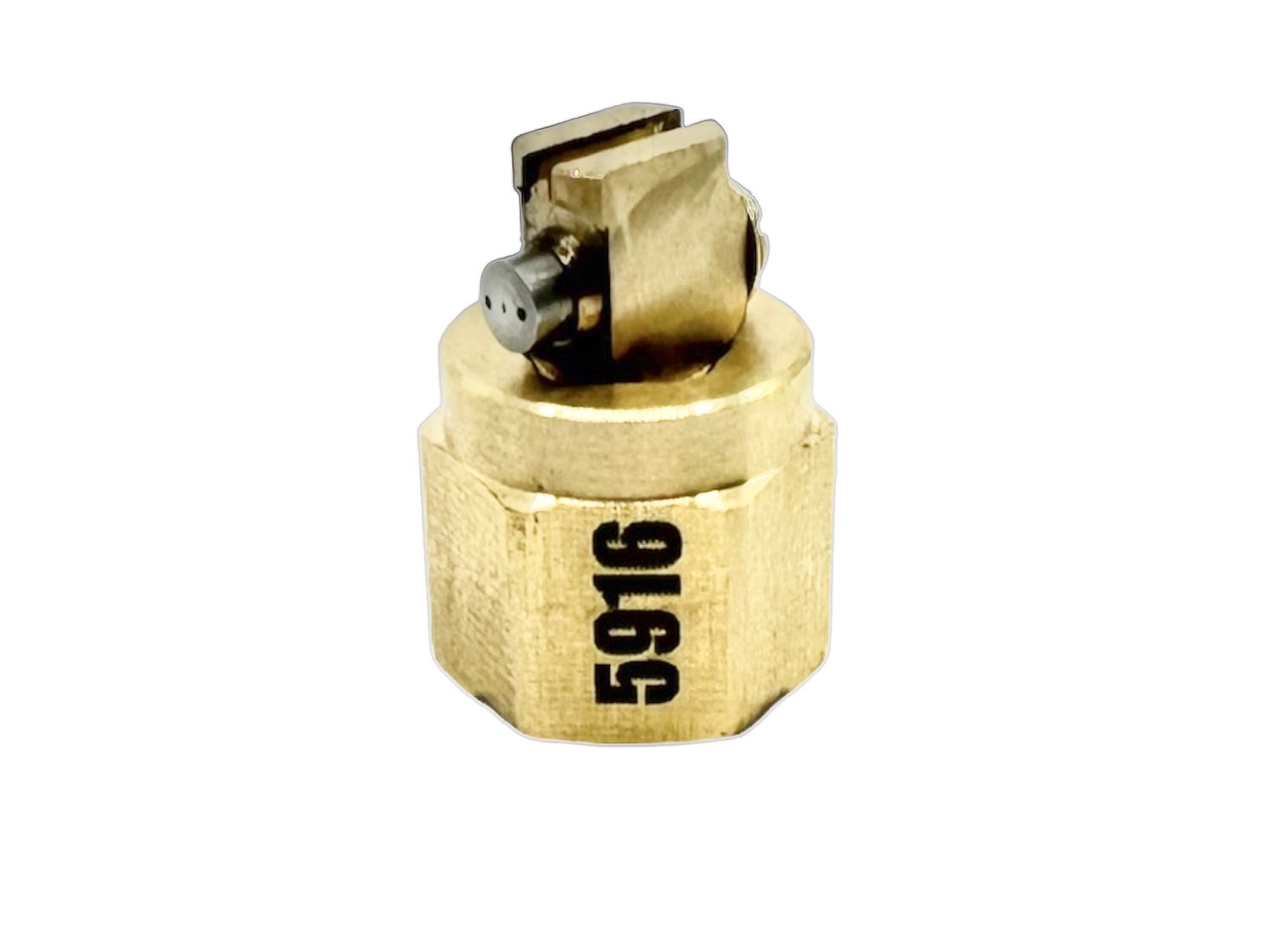

Replacement 016 Nozzle for Nordson® 1015916

SKU T10A59A6S Replaces Nordson® 1015916

HMSC right angle nozzle HMS-N-1015916, Dual 30° pattern, replaces Nordson® 1015916, .016 in orifice

Hot Melt Supply Company LLC

MSRP: $59.00
$56.00
(You save $3.00 )
Adding to cart… The item has been added
Download the spec sheetPDF
Need to confirm the fit or order by phone? 1-888-202-1788 Email sales

Specifications

Nozzle ID guide
Replaces Nordson®
1015916
Also replaces
27070032021665000-216974XX405A1015916A270-700APNN92163CN1716H1015916H270700H320216N9M1632N9M1642NO20S9-1630R23016ZLA70B00ZLK01G916More cross references: call 1-888-202-1788
Other brands
INFINITY NP-1015916INFINITY NP-320216 OR 1015916PNR 90 DUAL 30 .016
Replaces Valco/Melton
974xx405
Replaces Graco InvisiPac
130220
Category
90 Degree NozzlesDual Orifice
Orifice Diameter
.016 in
Nozzle Type
Right Angle
Pattern
Dual 30°
HMSC part number
HMS-N-1015916
Specification Sheet
Download (PDF)
SKU
T10A59A6S
Weight
0.05 LBS
Shipping
Calculated at checkout

Hot Melt Supply is an independent company and is not affiliated with, endorsed by, or sponsored by Nordson Corporation or any other OEM. All products are manufactured by Hot Melt Supply unless otherwise noted. Any OEM names, part numbers, trademarks, or brands mentioned are for identification and reference purposes only and are used to indicate compatibility with non-OEM replacement parts.

Description

Replacement 016 Nozzle for Nordson® 1015916

Direct replacement for OEM part number 1015916. Precision-machined replacement nozzle for accurate bead placement and consistent adhesive application. Drop-in compatible for fast changeover with no modifications required.

Specifications: .016 Diameter, 30Deg Replacement 016 Nozzle for Nordson® 1015916 Replacement 90 degree Nozzles for Nordson® Standard Modules

Why Choose This Part:

  • Compatible replacement, drop-in fit, no modifications needed
  • Engineered to meet or exceed OEM performance standards
  • In-stock and ready to ship to minimize your downtime
  • Replaces OEM part numbers: Nordson® 1015916, Valco/Melton® 974xx405

Catalog specifications

HMSC part numberHMS-N-1015916
Replaces Nordson®1015916
Also replaces270700, 320216
TypeRight Angle
PatternDual 30°
Orifice.016 in
Graco InvisiPac® equivalent130220
Valco equivalent974xx405

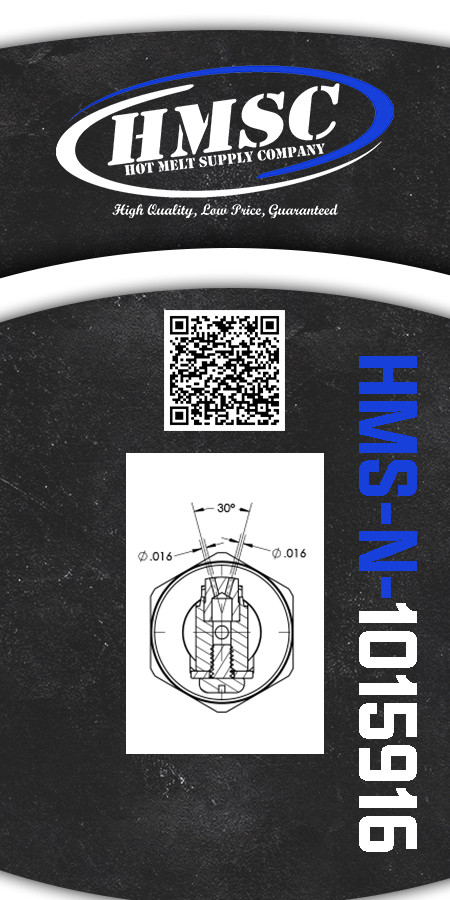

Right angle nozzle with two orifices, 30 degrees total. .016 in orifice.

Phosphor brass body with a precision drilled stainless steel insert, orifice held to ±.0005 in. Every nozzle is hand probed and inspected, inserted and crimped, inspected for straightness, and marked with the orifice size on the hex. Fits all H200 modules.

From the HMSC Hot Melt Field Guide. Nordson is a registered trademark of Nordson Corporation; part numbers are used for identification only.
