Replacement .014 Nozzle for Nordson® 1015814

SKU T10A58A4S Replaces Nordson® 1015814

HMSC right angle nozzle HMS-N-1015814, Dual 15° pattern, replaces Nordson® 1015814, .014 in orifice

Hot Melt Supply Company LLC

MSRP: $59.00
$56.00
(You save $3.00 )
Adding to cart… The item has been added
Download the spec sheetPDF
Need to confirm the fit or order by phone? 1-888-202-1788 Email sales

Specifications

Nozzle ID guide
Replaces Nordson®
1015814
Also replaces
273384320114974XX204A1015814A273-384APNN92141CN1614H1015814H273384H320114N9M1412PNN92141PNR90DUAL15014R21514ZLA73S84ZLK01G814ZLS20K14
Other brands
INFINITY NP-1015814INFINITY NP-320114 OR 1015814
Replaces Valco/Melton
974xx204
Replaces Graco InvisiPac
130212
Category
90 Degree NozzlesDual Orifice
Orifice Diameter
.014 in
Nozzle Type
Right Angle
Pattern
Dual 15°
HMSC part number
HMS-N-1015814
Specification Sheet
Download (PDF)
SKU
T10A58A4S
Weight
0.05 LBS
Shipping
Calculated at checkout

Hot Melt Supply is an independent company and is not affiliated with, endorsed by, or sponsored by Nordson Corporation or any other OEM. All products are manufactured by Hot Melt Supply unless otherwise noted. Any OEM names, part numbers, trademarks, or brands mentioned are for identification and reference purposes only and are used to indicate compatibility with non-OEM replacement parts.

Description

Replacement .014 Nozzle for Nordson® 1015814

Direct replacement for OEM part number 1015814. Precision-machined replacement nozzle for accurate bead placement and consistent adhesive application. Drop-in compatible for fast changeover with no modifications required.

Specifications: .014 Diameter, 15Deg Replacement .014 Nozzle for Nordson® 1015814 Replacement 90 degree Nozzles for Nordson® Standard Modules

Why Choose This Part:

  • Compatible replacement, drop-in fit, no modifications needed
  • Engineered to meet or exceed OEM performance standards
  • In-stock and ready to ship to minimize your downtime
  • Replaces OEM part numbers: Nordson® 1015814, Valco/Melton® 974xx204

Catalog specifications

HMSC part numberHMS-N-1015814
Replaces Nordson®1015814
Also replaces273384, 320114
TypeRight Angle
PatternDual 15°
Orifice.014 in
Graco InvisiPac® equivalent130212
Valco equivalent974xx204

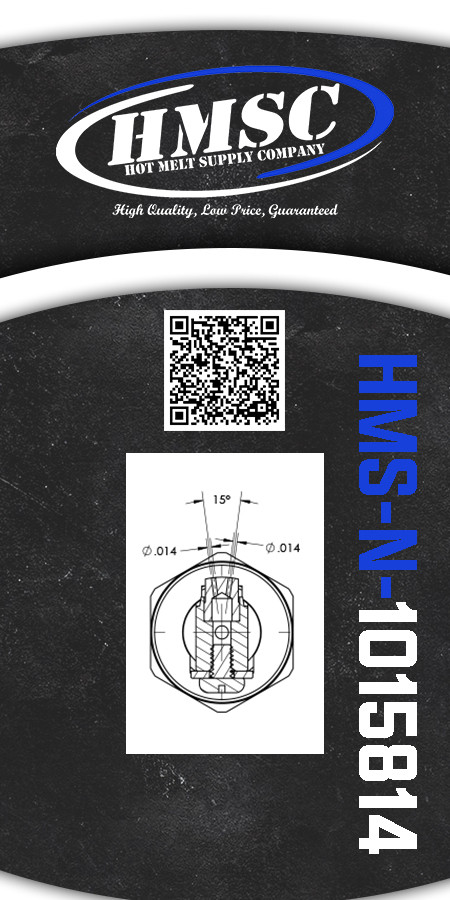

Right angle nozzle with two orifices, 15 degrees total. .014 in orifice.

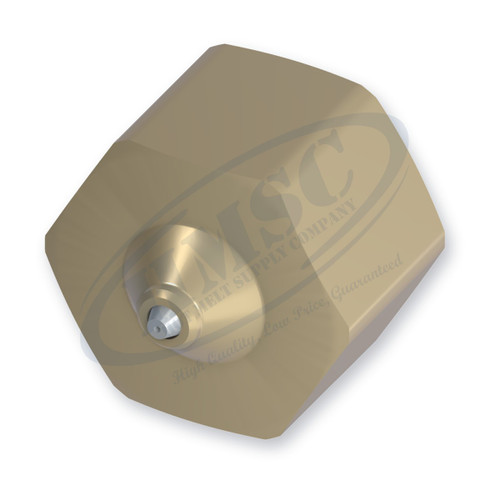

Phosphor brass body with a precision drilled stainless steel insert, orifice held to ±.0005 in. Every nozzle is hand probed and inspected, inserted and crimped, inspected for straightness, and marked with the orifice size on the hex. Fits all H200 modules.

From the HMSC Hot Melt Field Guide. Nordson is a registered trademark of Nordson Corporation; part numbers are used for identification only.
