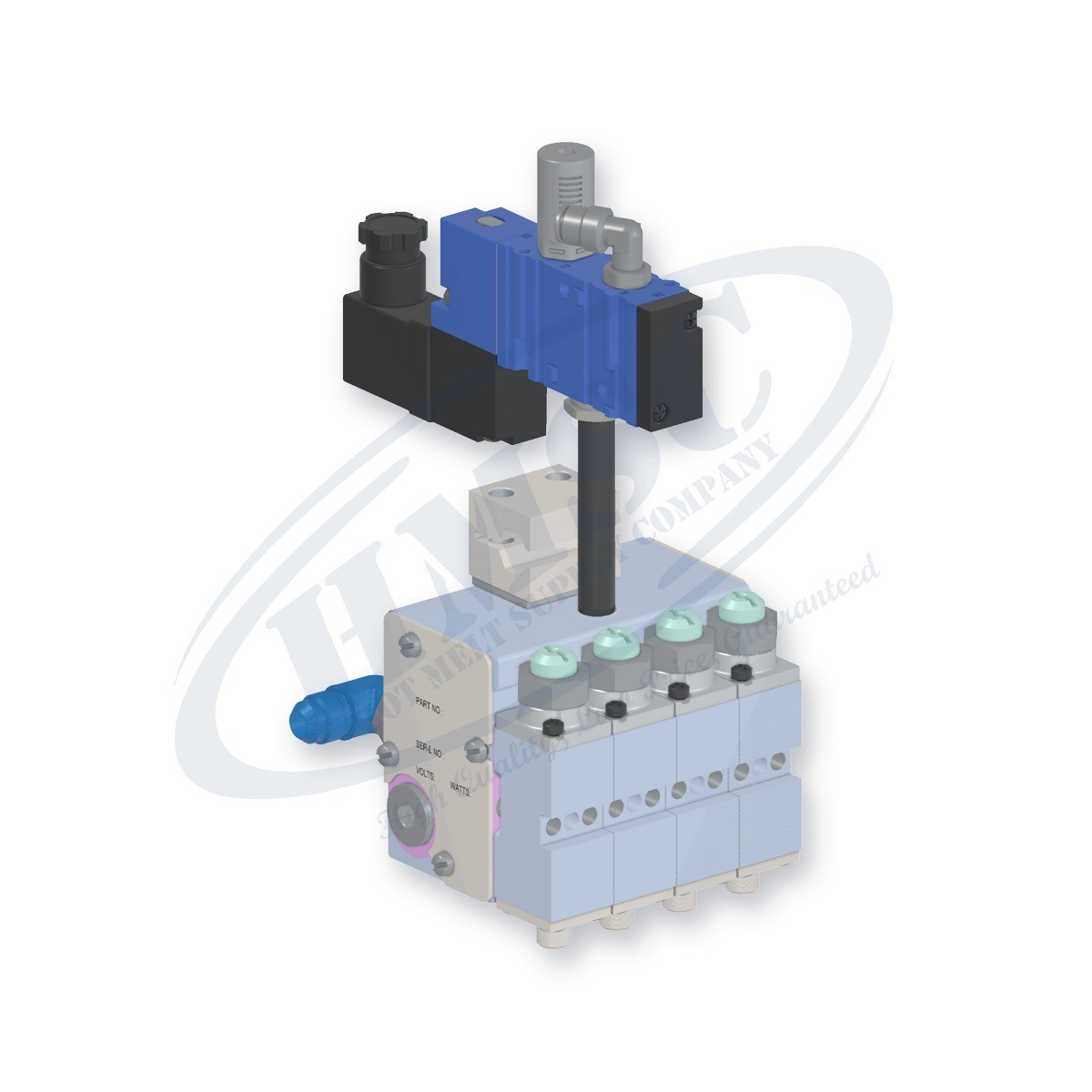

Direct Replacement for Nordson® 8511813, H204 Style 4 Module Gun

SKU HMS-BC-410210123 Replaces Nordson® 8511813

H204 Style 4 Module Gun, direct replacement for Nordson 8511813. HMSC configured part number HMS-BC-410210123, configuration BCM-SLBS-STD-04-A-CA-022-022-022-T-RB-3A1A-F9-3

Hot Melt Supply

Call for price

Call or email our sales team for price and lead time on this part.

Call 1-888-202-1788 Email for a quote

Have the part number ready: SKU HMS-BC-410210123

Download the spec sheetPDF

Specifications

Gun code guide
Replaces Nordson®
8511813
Category
H203 and H204 Style3 & 4 Module Guns
HMSC part number
HMS-BC-410210123
Configuration Code
BCM-SLBS-STD-04-A-CA-022-022-022-T-RB-3A1A-F9-3 Read the code
Cordset
T, standard 6 pin
Family
H200
Modules
4
Air Supply
Common Air
Module Type
Ball and Seat
Voltage
240 V
Solenoid
3 port, 24 VDC, LED
Specification Sheet
Download (PDF)
SKU
HMS-BC-410210123
Weight
4.00 LBS

Hot Melt Supply is an independent company and is not affiliated with, endorsed by, or sponsored by Nordson Corporation or any other OEM. All products are manufactured by Hot Melt Supply unless otherwise noted. Any OEM names, part numbers, trademarks, or brands mentioned are for identification and reference purposes only and are used to indicate compatibility with non-OEM replacement parts.

Description

Preconfigured gun built by Hot Melt Supply Company to a released HMSC drawing, from stocked subassemblies. Direct replacement for Nordson® 8511813.

HMSC part number: HMS-BC-410210123
Configuration code: BCM-SLBS-STD-04-A-CA-022-022-022-T-RB-3A1A-F9-3

Complete subassemblies (service parts):

  • Gun body: HMS-BC-400200000
  • Heater: HMS-HNA-34673
  • 4 x Standard AOSC module, ball and seat: T10F29B5S
  • Solenoid kit (MAC 52 series): HMS-0005-KIT-04
  • Cordset T, standard 6 pin: T2K46M5S
  • Inline filter, 100 mesh, 90 degree: T10P72C1S
  • Parts kit, multi module, common air, short: HMS-0005-KIT-05
  • Side cover kit, multi module gun: HMS-0005-KIT-02

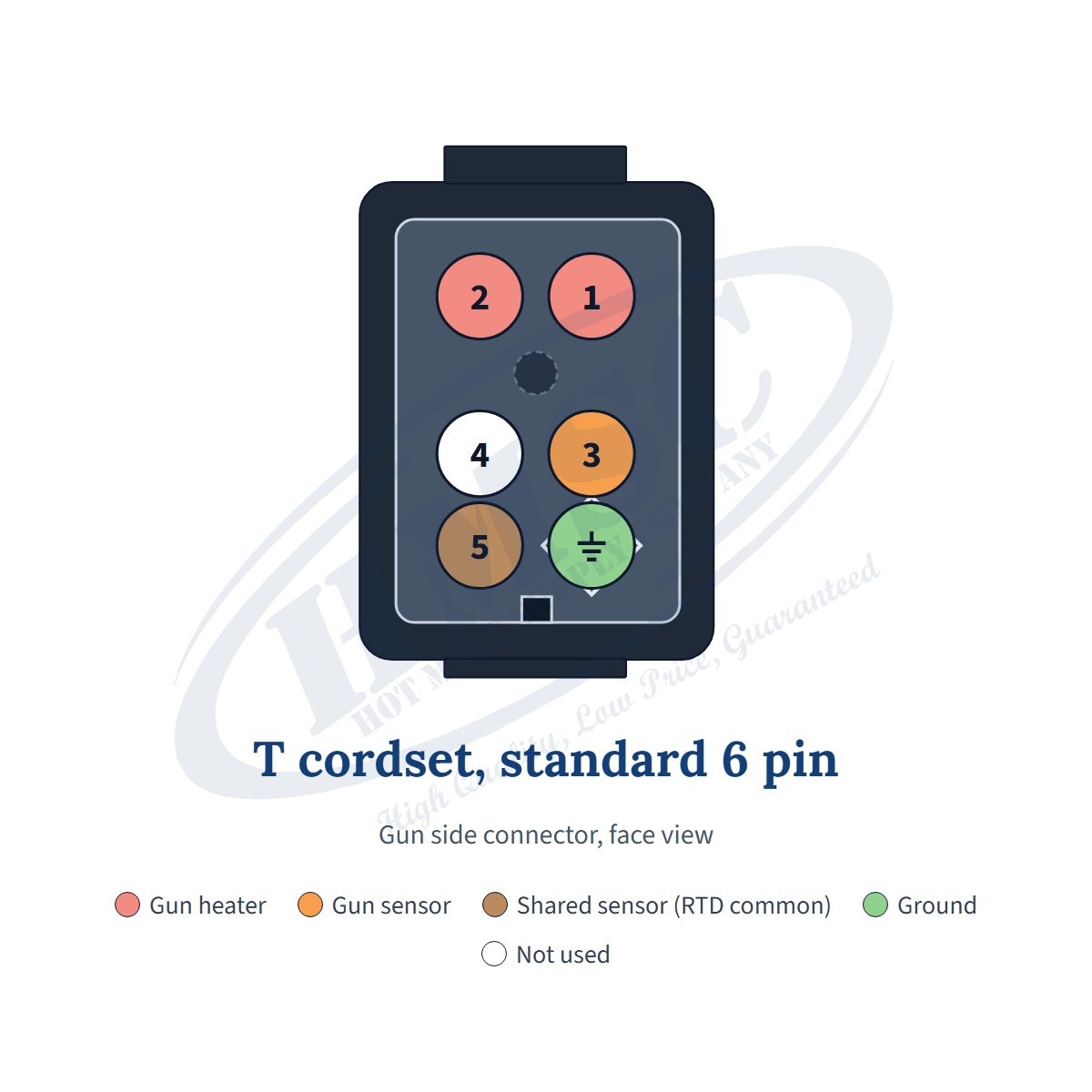

The cordset pinout is shown in the product images. Call 1-888-202-1788 for pricing and lead time.

Nordson is a registered trademark of Nordson Corporation. Hot Melt Supply Company is not affiliated with Nordson Corporation. Part numbers are used for identification only.
